50 YEARS OF DESIGN AT THE CENTER OF EVERY TEST SYSTEM.

At Jenkins, history and innovation aren’t at conflict—they work hand in hand. Which means that though the power circuit in our Motor Test Systems has remain unchanged for half a century, we also utilize the latest in industrial software technology. Our systems are built on the principles of safety, simple operation and dependable service, with a power supply engineered to work continuously for eight hours at full ratings. That’s history worth repeating.

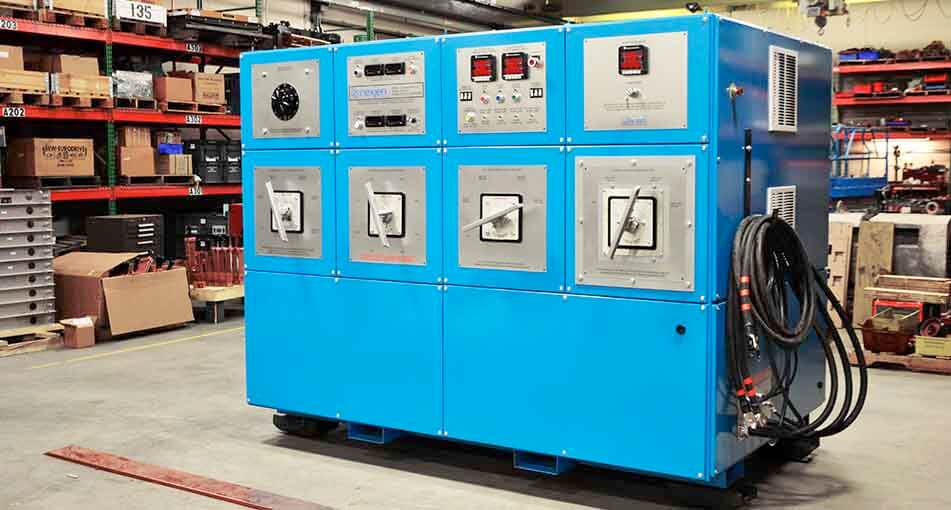

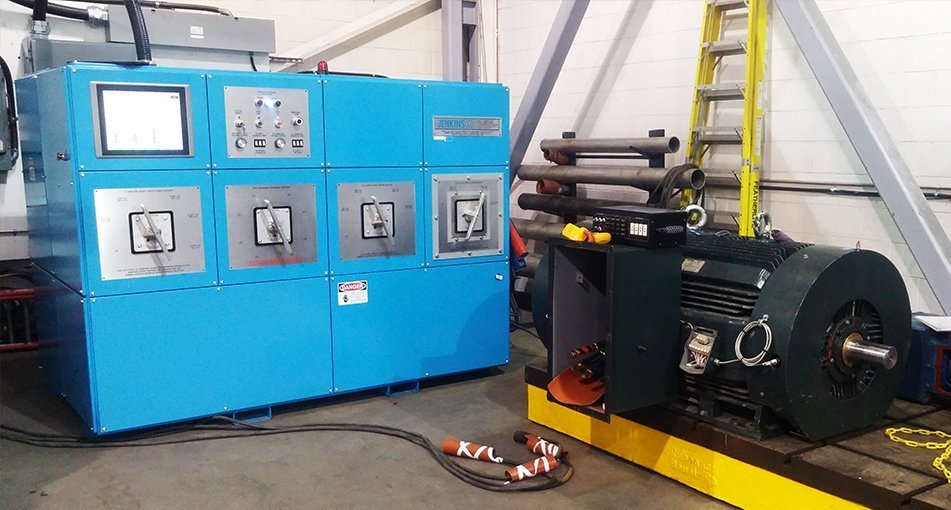

Motor test systems

Operating primarily as a motor repair shop since 1907, we developed our line of Motor Test Supplies and Test Documentation Software for our shop and those of fellow companies. Handling a wide range of motors, our equipment is built to be rugged and is field proven. We’ve also included software diagnostics capabilities. With a half century of ingenuity at its core, our system’s operational design is configured to protect the operator, the motor and the input supply while providing full test documentation.

100 KVA-5,000 KVA MODELS

An 18-month warranty, on-site technician training and commissioning are included with each system. Remote technical support is available for network systems. Constructed with heavy-duty components and few moving parts, our Motor Test Systems are Jenkins-reliable, operating for decades without the need for maintenance.

FEATURES

  • System enclosure designed to conserve shop floor space
  • If motor is being load tested on a dynamometer, running values will be displayed
  • Simple controls for ease of use
  • Test data from optional peripheral equipment automatically downloads and incorporates into test report database
  • Eye-level 17” HMI touch screen
  • Key switch provided to prevent unauthorized system usage
  • Continuous display of outputs during operation
  • Push-button activated supply with red LED strobe lamp illuminating panel output
  • Software interfaces with the system metering, PLC and Soft Starter
  • Operational training tutorials, user guide, suggested test methods and system component manuals are stored on TDS system computer
  • Supplemental 32” flat screen display provided for remote mounting and viewing
  • A 5” X 7” "DANGER – HIGH VOLTAGE" sign mounted on each side of enclosure
  • System operational conflict warnings/alarm indicate problems on the HMI display
  • Running values displayed if motor load-testing is on a dynamometer
  • Displays system input and output voltages, currents, frequency and tachometer readings
SEE ADDITIONAL FEATURES & PRICING

Test Documentation Upgrades

Our standard test documentation package ships with a PC and printer, displays real-time AC and DC meter data during tests, records data to a searchable test database, and prints a test report to be kept on file or provided to the client. Test reports can be directly saved to job folders.

TEMPERATURE & VIBRATION MODULE

This portable data acquisition system connects to the test documentation PC via a USB cable and includes ports for six accelerometers, four thermocouples and four RTDs. The software upgrade includes the display of temperature and vibration data on the meter screen, and a graphical display of temperature vs. time curves and vibration FFTs.

DYNAMOMETER INPUT

With a simple connection to an AW dynamometer controller, the test documentation software displays and records mechanical test data including output power, RPM, percent efficiency, percent load and torque. Configuration for a non-AW dynamometer is available and can be quoted separately.

TDS ADD-ON MODULES

Allowing you to upgrade any brand of existing motor test supply, our state-of-the-art Test Documentation System modules bolt to the side of your existing test supply and pull electrical test data from test leads. Can be purchased separately to add onto existing test supply.


Optional Accessories

AUXILIARY AC SUPPLY

Run small motors with a fully variable AC supply from 0-585V

AUXILIARY NO-LOAD DC SUPPLY

Run small or no-load DC motors with a fully variable DC supply from 0-585V

BOOM-MOUNTED TEST LEADS

Provide a safe method for keeping leads out of the way while motors are being tested


Test System Services

ANNUAL CALIBRATION

We fully support our test systems long after installation, with annual calibration from our technicians.

SOFTWARE UPGRADES

There’s little to worry about with our motor test systems. After all, they’re designed to last decades without maintenance, and regular software upgrades are available.

ROUTINE MAINTENANCE

Our technicians can ensure that your motor test system is calibrated and performing optimally with scheduled routine maintenance.
